INVT GD5000 Regenerative Medium Voltage AC Drive
INVT GD5000 AFE (Active front end) medium voltage drive, also called as regenerative 4 quadrant vector VFD, support energy saving feedback. Automatic compensation for power supply fluctuations. On some special load when motor run as generator, the frequency drive system can get energy feedback to grid power, more economic.
The AFE drive designed with special IGBT power cells, with advanced AVR and LVRT function, suit wide range voltage vibration, higher overload ability more reliable, support system bypass and power cell bypass, support Modbus, Profibus-DP and various communication methods, easy connect to DCS system, or INVT IoT. Regenerative 4 quadrant medium voltage ac drive suitable for various load, such as mine belt conveyor, hoist machine, crane.

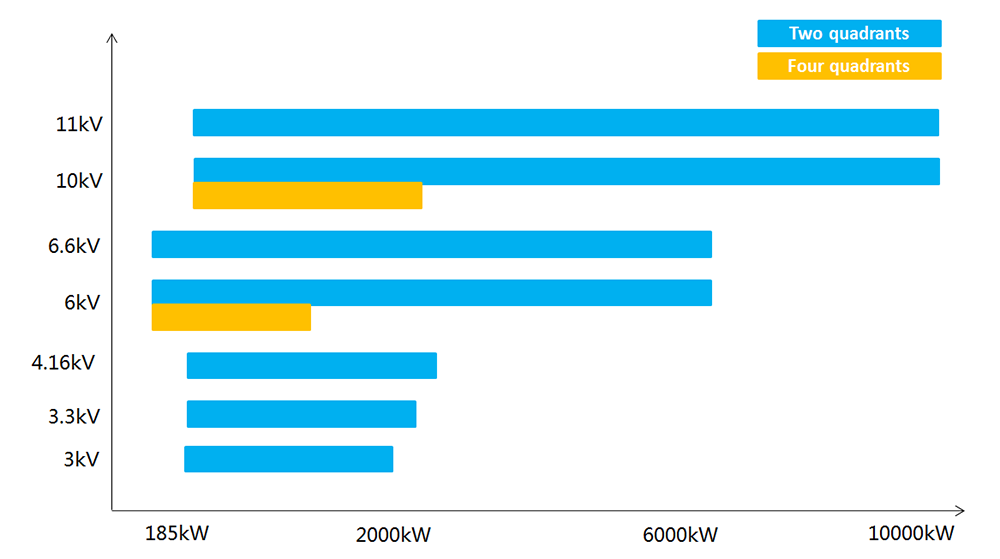

Voltage level and power range:

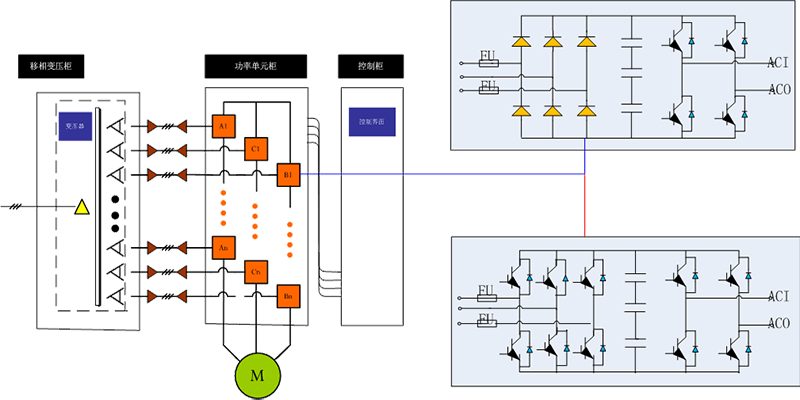

Basic principles for AFE Four quadrant medium voltage drive and power cell:

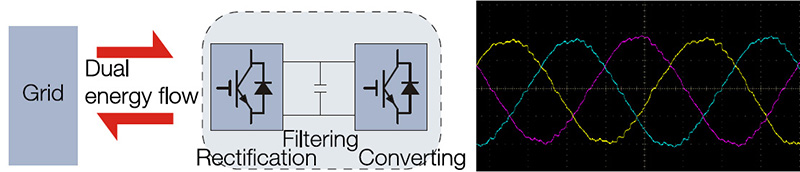

Power units use IGBT for rectification, dual energy flow, energy saving and environmental protection. With full rated power energy regenerative ability.

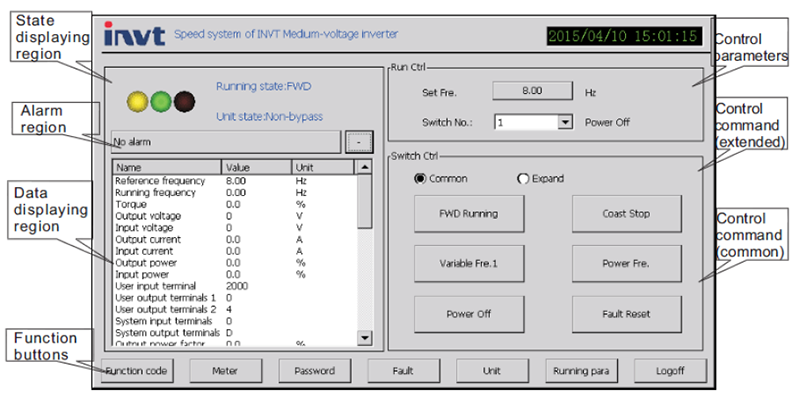

User friendly HMI, support INVT studio software PC debug, support USB drive download data.

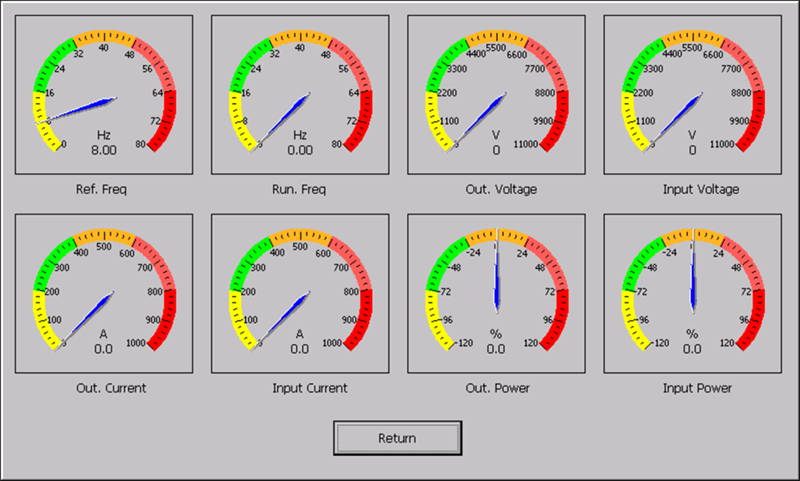

Running monitor meters:
(Set/Running frequency, Input/output volt, Input/output Amp, Input/output Power)
